VIRTUAL NTC 3D TERRAIN WITH TIEFORT CITY

MVRsimulation has built an enhanced version of the industry standard virtual National Training Center (NTC) terrain for use on PC-based visual systems running Virtual Reality Scene Generator (VRSG). The terrain database, one of several urban warfare terrain databases MVRsimulation has built with its Terrain Tools for Esri® ArcGIS® features the Bicycle Lake Army Airfield and the Tiefort City Mobile Military Operations in Urban Terrain (MOUT) site.

The NTC at Fort Irwin, CA, is one of the most frequently modeled terrain databases for simulation. The actual facility is used heavily by the U.S. armed ground forces for live fire and maneuver training with a focus on pre-deployment counter-insurgency operations. Approximately 70,000 soldiers, including 20,000 reservists, participate in the ten month-long rotations the center hosts each year. Training includes combined arms operations in mock urban areas. Virtual-world representations of NTC are used in simulators that enable soldiers to train in the virtual NTC when they are not engaged in live training. After receiving training in the virtual NTC, soldiers go on rotation to train at the actual NTC facility. The Tiefort City Mobile Military Operations in Urban Terrain (MOUT) site is used to train infantry for urban operations.

About the database

The 1-geocell database was built from 1 meter-per pixel (mpp) color CONUS imagery with the following high-resolution inset imagery: .25 mpp imagery of the Bicycle Lake Army Airfield, .35 mpp imagery of Tiefort City, and .50 mpp of the Fort Irwin area. The terrain was built with 30 mpp (NED) and 90 mpp (DTED1) elevation data.

Cultural features of the Bicycle Lake, Fort Irwin, and Tiefort City areas that match the imagery were manually and automatically added to the terrain with MVRsimulation's Terrain Tools for Esri ArcGIS. Users can create pattern-of-life scenarios on this terrain using MVRsimulation’s Scenario Editor.

About the models

The buildings and other structures on the NTC terrain were geolocated on the terrain to match the imagery.

The terrain contains the following cultural features of the Bicycle Lake, Fort Irwin, and Tiefort City areas:

772 geotypical buildings
89 photospecific/photorealistic buildings (Tiefort City)
865 geotypical desert vegetation
190 road segments
110 fence segments
200 utility poles and power lines
133 cones and generators
115 barriers, portable toilets, surveillance cameras, and gas tanks (Tiefort City)

In addition, the database has hundreds of light points and airfield runway lights.

About the Tiefort City urban training site

One important area of detail is the replica of Tiefort City MOUT site, one of nine mock urban training villages at NTC. Located near the Tiefort Mountain in the Mojave Desert, the village is the largest urban training ground at NTC for preparing troops for combat in a desert setting.

The Tiefort City site is made up of a large cluster of low-rise prefabricated plywood structures. These structures, which look like shipping containers with windows, are reconfigurable intermodal MOUT training shelters and containers. Modular, transportable and stackable, they can be used for various types of building site configurations; for example the structures can be stacked and attached to create multi-story buildings. At the site soldiers undergo training scenarios such as setting up ambushes, house-to-house searches for insurgents, responding to snipers, and identifying car bombs and improvised explosive devices. Tiefort City provides a realistic urban training ground; it is the last stop for many U.S. soldiers before deployment. MVRsimulation’s virtual-world representation of Tiefort City can be used in simulators so that soldiers can continue with training scenario activities when they are not engaged in live training.

MVRsimulation’s virtual Tiefort City MOUT site contains several high-resolution site-specific models. The mobile MOUT structure models were custom created for this virtual MOUT site; these models were based on perspectiveless digital photographs of actual mobile MOUT structures at Tiefort City built by Anteon. The models were created in a third party modeling program and converted to MVRsimulation’s model format. The virtual mobile MOUT structures have articulated doors that can be set in various states. The virtual site also has models of other cultural elements such as barriers, gas tanks, power generators, portable toilets, surveillance cameras; these models too were modeled from on-location photographs. All models are in MVRsimulation’s round-earth model format.

Actual and simulated view of the MOUT site

The comparison images below are of a photograph of an actual mobile MOUT unit on the left and a VRSG screenshot with the MVRsimulation model of the unit on the right.

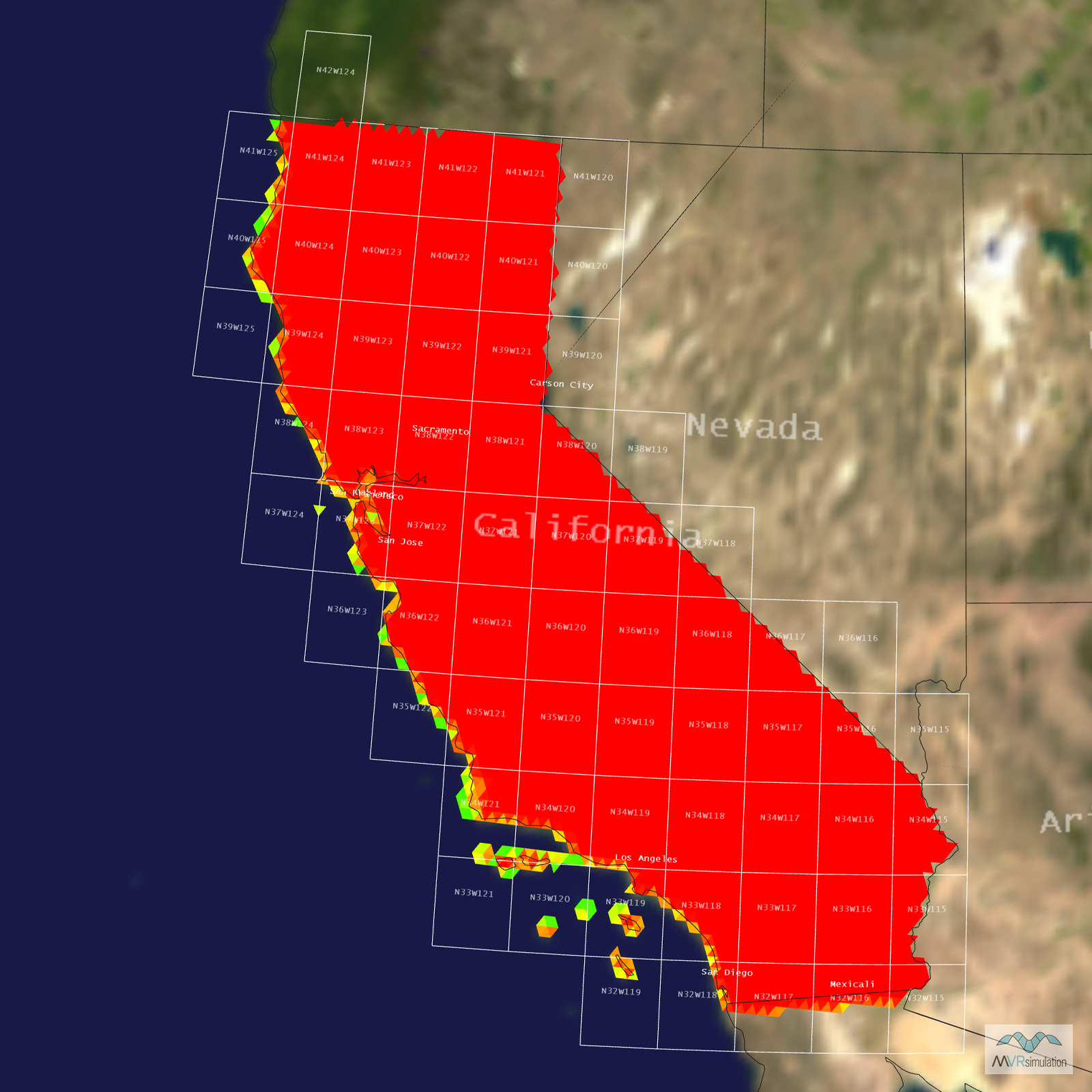

MVRsimulation’s virtual NTC at Fort Irwin is available as part of the Southwest US region of CONUS++ 3D terrain, available to all  customers who are on active VRSG software maintenance and are US Government agencies or contractors (for official use only). For US-domestic use only, not available for export. The terrain is provided in MVRsimulation's round-earth terrain format and will only run with a valid VRSG software license with valid software maintenance.
