MVRsimulation can deliver its software on state-of-the-art personal computers for customers who might benefit from a complete solution for virtual world navigation. A complete VRSG system with MVRsimulation software and available terrain databases preinstalled, includes a Windows PC with the latest in high-end PC gaming components.

Our virtually integrated partnership with a just-in-time assembly facility in the Boston, MA, metropolitan area enables us to deliver custom personal computer systems on a zero inventory, build-to-order basis. MVRsimulation runs full burn-in and networking tests on all systems before shipping them to your site. We can also recommend component-by-component choices for your system.

MVRsimulation can process and return an individual quote once your system requirements are codified (usually within 48 hours). Because we maintain no hardware inventory, we provide just-in-time pricing quotes to get the most current system components at the lowest price. Our market research continually attempts to define the best possible system the industry has to offer.

MVRsimulation products run on a variety of Windows-based computers that meet our recommended system requirements. We recommend the complete systems listed below as a general guideline. As MVRsimulation periodically updates the components offered in our complete systems to make available the best of current hardware technology, we also update this website with new specifications and the associated price changes. With any of our complete system specifications, we can offer a custom quotation to meet your needs. In most cases, we offer custom quotes that match system performance with budgetary requirements. If you have any questions about our specifications, contact sales@mvrsimulation.com.

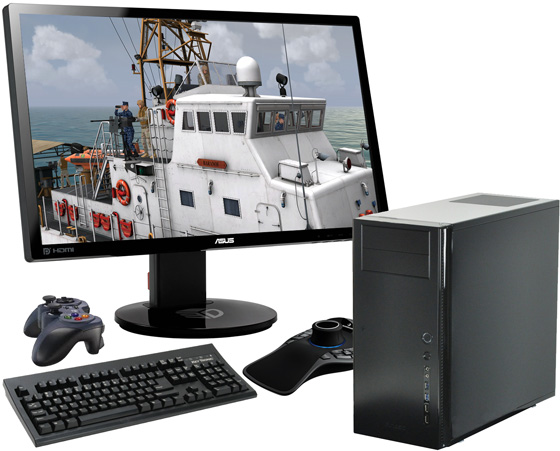

The MVRsimulation VRSG Desktop visual system is designed to support a configuration of a limited number of systems in a lab or classroom environment. This system uses an Intel seventh generation quad-core I7 processor suitable for simultaneous use of VRSG and SAF applications such as Battlespace Simulations’ (BSI's) Modern Air Combat Environment (MACE) and supports the use of VRSG with VR headsets. The various hardware components can be easily upgraded to meet specific needs. This system is delivered with all of MVRsimulation's terrain of the world.

MetaVR Extreme Desktop visual system

Specification

  • MVRsimulation VRSG
    • Software, latest release of version 6 on Blu-ray TL media or USB media
    • Printed color user's guide
    • Gemalto HASP Pro H USB dongle for license validation
  • Microsoft Windows 10 PROFESSIONAL 64-BIT OEM license & DVD media
  • Nvidia GeForce RTX 3090 PCI-Express 3.0 x16 Graphics Card w/ 24 GB
  • Intel Core I7-9700K 3.6GHz / 4.9GHz 12MB OCTA-CORE Processor (8 Cores / 8 Threads)
  • Asus TUF Z390-PRO GAMING LGA1151 ATX Motherboard
  • 32GB (2 - 16GB) PC4-21300/DDR4-2666 Unbuffered 1.20V UDIMM RAM
  • 2X USB 3.1 Gen 2 (Rear) / 4X USB 3.1 Gen 1 (Rear) / 2X USB 2.0 (Rear) / 1X USB 3.0 / 1X USB 2.0 (Front)
  • Integrated 6-Port Serial-ATA/600 Ports
  • Internal: Samsung 970 Pro 1TB NVMe PCI-e 3.0 x4 M.2 Solid State Drive (OS)
  • Removable: (3X) Seagate Exos X16 16TB 256MB 7200RPM SATA-600 hard drives with Icy Dock Hot-Swap Cages
  • LG Blu-Ray 16X Writer SATA Internal Drive
  • Integrated Realtek ALC887 8-Channel High Definition Audio
  • Integrated SINGLE Intel 10/100/1000 Network Adapter
  • Intel X550-T2 10-Gigabit Dual Port PCI-E x4 Network Adapter Card
  • 1000W 80 Plus Platinum ATX12V / EPS12V Power Supply
  • Mid Tower ATX Case
  • Asus VE248Q 24" wide-screen display
  • Keytronic black USB keyboard
  • Microsoft Comfort Mouse 4500 USB and mouse pad
  • Logitech F310 USB gamepad
  • 3Dconnexion SpaceMouse Pro USB 3D device

PN: VRSGDESKTOP

Total Cost: $19,995.00 U.S. (shipping not included) Availability is limited and delivery lead time is 12-18 weeks.

This configuration represents a state-of-the-art, high-end system. However, MVRsimulation can modify the components to meet your individual price and performance needs.

This specification is subject to change without notice. Please contact MVRsimulation to confirm whether this configuration is current and for more information. (02/21)

The MVRsimulation Ruggedized Rackmount is an image generator for fielding in simulation training facilities or laboratories in rack configurations. The unit is designed to allow multiple reconfigurations and can be maintained by existing site technicians with basic Windows PC experience.



Specification

  • MVRsimulation VRSG Software, latest release of version 6, printed color user's guide and SafeNet Sentinel HASP USB dongle for license validation.
  • Intel Core X I9-10900X 3.7GHz / 4.5GHz 20MB OCTA-CORE Processor (10 Cores / 20 Threads)
  • Asus Pro WS X299 SAGE LGA-2066 CEB Motherboard
  • 64GB (4 - 16GB) PC4-23400/DDR4-2933 Unbuffered 1.20V UDIMM RAM
  • Nvidia GeForce RTX 3090 PCI-Express 3.0 x16 Graphics Card w/ 24 GB
  • 2X USB 3.2 Gen 2 / 6X USB 3.2 Gen 1 / 4X USB 2.0 (Rear) / 2X USB 3.0 (Front)
  • (2X) Removable Samsung 970 EVO Plus 2TB NVMe PCI-e 3.0 x4 M.2 Solid State Drive - RAID 1
  • Icy Dock ToughArmor 2-Bay M.2 PCIe NVMe SSD Mobile Rack for 3.5" Drive Bay
  • Intel RSP3DD080F 8-Port SATA/SAS PCI-E x8 RAID Controller Card w/ 4GB Cache
  • (5X) Removable Seagate Exos X16 16TB 256MB 7200RPM SATA-600 Hard Drive - RAID 5. ~57TB
  • Chenbro 3-Bay 5 Drive SATA/SAS Hot Swap Removable Hard Drive Bay
  • Slim-Line Blu-Ray 6X Writer SATA Internal Drive
  • Integrated Realtek ALC S1220A 8-Channel High Definition Audio
  • Integrated DUAL Intel I225-LM 2.5-Gigabit Network Adapter
  • Intel X550-T2 10-Gigabit Dual Port PCI-E x4 Network Adapter Card
  • Asus TPM-M R2.0 (14-1 Pin) Module
  • Asus ThunderBoltEX 3 PCI-E x4 Expansion Card
  • Chenbro RM413 4U Rackmount Chassis (19"W x 7"H x 22.2"D)
  • Chenbro Rackmount Slide Rails
  • 1000W 80 Plus Platinum ATX12V / EPS12V Power Supply
  • Microsoft Windows 10 PROFESSIONAL 64-BIT OEM License & DVD Media

PN: VRSGRKMT

Total Cost with Nvidia GeForce RTX 3090 PCI-Express 3.0 x16 Graphics Card w/ 24 GB:
$22,995 U.S. (shipping not included)
Availability is limited and delivery lead time is 12-18 weeks.

Total Cost with upgrade PNY Nvidia Quadro RTX6000 PCI-Express 3.0 x16 Graphics Card w/ 24GB & Nvidia Sync Daughter Board:
$28,995 U.S
. (shipping not included) Availability is limited and delivery lead time is 12-18 weeks.



This configuration represents a high-end, state-of-the-art system meant to be used in a multichannel configuration with the MVRsimulation Ruggedized Rackmount Operator System (PN: OPSTATION) and a MVRsimulation Terrain Server (PN: TERRAINSERVER). Ruggedized units can be ordered in various quantities. Such systems will support peripherals needed for a multi-channel image generator/simulator. MVRsimulation can customize the component configuration to meet your individual price and performance needs.



This specification is subject to change without notice. Please contact MVRsimulation to confirm whether this configuration is current and for more information.  (02/21)

The MVRsimulation Ruggedized Rackmount Operator Station is used to house the Ruggedized Rackmount systems in simulation training facilities and laboratories. This ruggedized unit is hardened to withstand environmental factors such as dust, vibration, and heat.

Specification

  • 84" Rackmount Cabinet w/ Plexiglas Front Door, 6 Fan Top Panel, Anti-Tip & Casters
    (44U Usable - 84"H X 24"W X 42"D)
  • Cisco/Linksys SRW2016 16-Port 10/100/1000 MANAGED 1U Rackmount Switch
    w/(10X) 7FT CAT6 Cable
  • Netgear ProSafe XS712T 12-Port 10-Gigabit 1U Rackmount Smart Switch
    w/(10X) 25FT CAT6a Network Patch Cable - 10-Gigabit
  • 1U Rackmount Power Strip - 6 NEMA 5-15R Front Outlets
  • (2X) APC Smart-UPS XL 3000VA RM 3U 120V
    Input: (1) NEMA L5-30P
    Output: (9) NEMA 5-15R, (2) 5-20R
  • Plywood Shipping Crate for 84" Cabinet

Recommended environment

  • Temperature Range:    41°F to 95°F (5°C to 35°C) derate 2°C for every 1 km up to 3 km
  • Relative Humidity:       20% to 80%, 27°C max wet bulb (noncondensing)
  • Altitude:                          Sea level to 9,843 ft (3000m)

PN: OPSTATION

Total Cost: $13,995.00 U.S. (shipping not included)

This Operator Station can support peripherals needed for a multi-channel image generator/simulators. MVRsimulation can customize the component configuration to meet your individual price and performance needs. Ruggedized units can be ordered in various quantities and chassis sizes.

MetaVR 4U rackmount visual system
Example of an 84" rackmount cabinet.

This specification is subject to change without notice. Please contact MVRsimulation to confirm whether this configuration is current and for more information. (02/21)

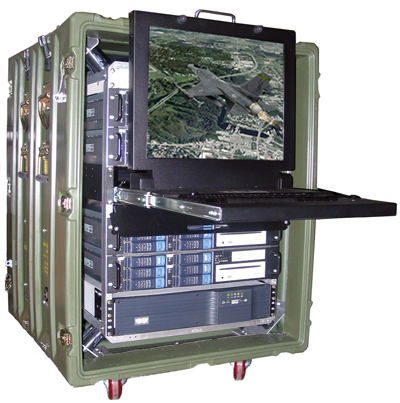

The MVRsimulation Portable Multi-Channel VRSG System is comprised of multiple, ruggedized, rackmount visual system computers in a hardened container. The ruggedized transportable container-based system is designed such that it can be rolled onto a pallet and airlifted to training exercises or demonstrations in the field on short notice and survive the journey and the training scenario under harsh conditions.

MVRsimulation can build a system with components to meet your individual price and performance needs. Contact MVRsimulation sales for a custom quotation of this system.

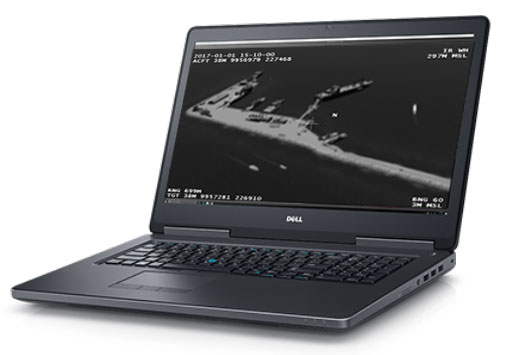

The MVRsimulation VRSG Notebook visual system provides high performance (more than one million triangles @ 60 FPS) with a maximum network load of approximately 20,000 entities, yet it weighs less then twelve pounds. This unit is optimal for on-the-road demonstrations and software development. This system uses an Intel eighth generation hexa-core I7 processor suitable for simultaneous use of Virtual Reality Scene Generator (VRSG) and SAF applications such as Battlespace Simulations' (BSI's) Modern Air Combat Environment (MACE) and supports the use of the MVRsimulation VR-Bundle. This system is compatible with our terrain databases of the world available on our DALV storage device.

MetaVR VRSG Notebook

Base Model Notebook VRSG Specification

  • MVRsimulation VRSG (single viewport)
    • Software Blu-ray Media
    • Printed color User's Guide
    • SafeNet HASP USB dongle for license validation
  • Dell Precision 7730 Mobile Workstation
  • Intel Core i7-8850H (Six Core 2.60 GHz)
  • 32GB RAM
  • Nvidia Quadro P5200 Graphics Card w/16GB GDDR5
  • 17.3" UltraSharp™ FHD IPS (1920 x 1080) Wide View with camera and microphone
  • 1TB M.2 PCIe NVMe Solid State Drive - Class 50
  • 1TB M.2 PCIe NVMe Solid State Drive - Class 50
  • Pioneer 6X BLU-RAY Writer External USB 3.0 Drive
  • Integrated Intel Gigabit LAN, RJ45
  • Intel WiFi Link 9260 2 x 2 802.11ac + BT 5 (vPro)
  • Internal Dual Pointing Backlit Keyboard, English
  • 6 Cell 91Wh Lithium Ion Polymer Battery w/ Express Charge
  • 240W AC Adapter w/ US Power Cord
  • Windows 10 Pro OS Recovery 64bit – USB
    Warranty:
    - 3 Year ProSupport with Next Business Day Onsite Service
    - 2 Years Extended Battery Service for Years 2 and 3 of System Life
    - Keep Your Hard Drive, 3 Years
  • Microsoft Comfort Mouse 4500 USB and mouse pad
  • Logitech F310 USB 3 DOF gamepad for JTAC, UAV camera, and fixed-wing modes in VRSG
  • 3Dconnexion SpaceMouse Pro USB 6 DOF controller for navigating the 3D virtual world in VRSG

PN: VRSGNOTEBOOK

Total Cost: $17,325.00 U.S. (shipping not included)

This configuration represents a high-end system meant to be state-of-the-art. However, MVRsimulation can modify the components to meet your individual price and performance needs.

This specification is subject to change without notice. Please contact MVRsimulation to confirm whether this configuration is current and for more information.

Scene from VRSG real-time video recording with the HTC VIVE system.
Scene from a VRSG real-time video recording with the HTC VIVE system, featuring a V-280 entity taking off from a CVN-77.

For immersive viewing, the MVRsimulation VR-Bundle is designed to support use of the Oculus Rift + Touch and HTC VIVE virtual reality systems with MVRsimulation's VRSG software. When you use a VR system with VRSG, you can experience MVRsimulation's high-resolution geospecific terrain and photo-realistic models from the 3D model libraries in a 360-degree view at 2160 x 1200 pixel resolution.

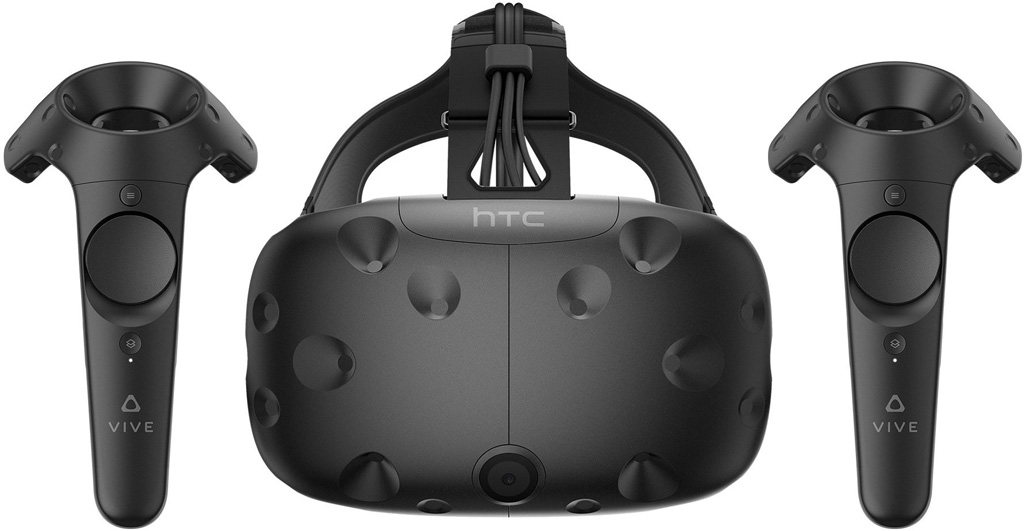

HTC VIVE virtual reality system.

HTC VIVE virtual reality system.

Oculus Rift and Touch

Oculus Rift + Touch virtual reality system.

The VR-Bundle for the HTC VIVE System or Oculus Rift + Touch System ships with sensor stands and a ruggedized storage and travel case. (A third sensor for the Rift is included.) When this bundle is purchased with a MVRsimulation VRSG computer system, the VR-Bundle will be tested and installed at our facility to ensure true plug-and-play usability upon delivery.

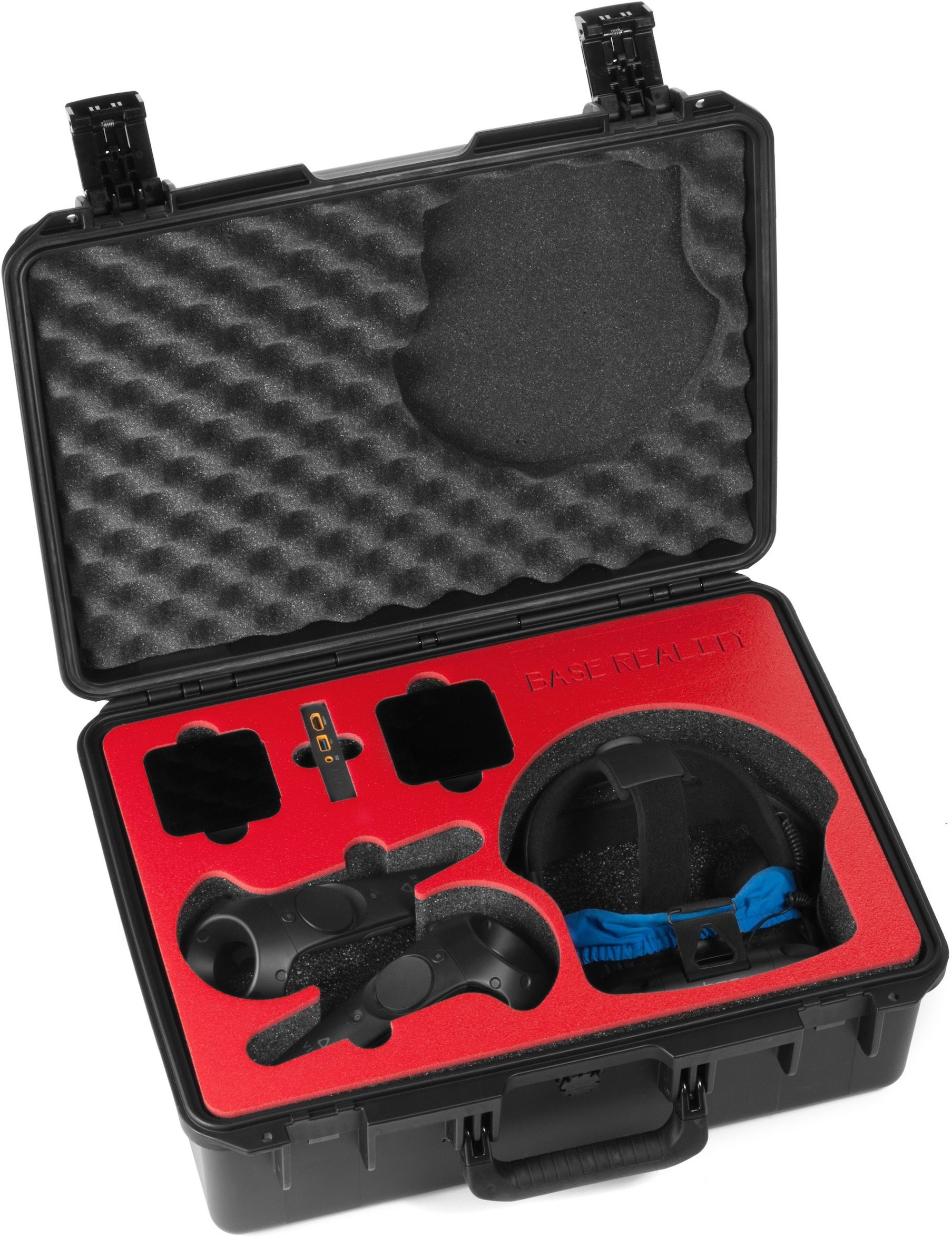

VR system travel and storage case.

VR system travel and storage case.



Specification

  • HTC VIVE System
  • Oculus Rift + Touch System
  • VR system sensor stand
  • Travel and storage case for each system

Use of the VR-Bundle requires a computer system with VRSG, the latest game-level graphics card, and three (3) USB 3.0 ports. See our VRSG Desktop System and our system requirements for more information.

PN: VRBUNDLE

Total Cost: $1,775.00 U.S. (shipping not included)



This specification is subject to change without notice. Please contact MVRsimulation to confirm whether this configuration is current and for more information.

The MVRsimulation Terrain Server is a high-end system which can store more than 80+ TB terrain database tiles for use with MVRsimulation Virtual Reality Scene Generator (VRSG) image generator (IG) systems. The system is designed to provide optimized high bandwidth data throughput over a 10GbE back bone network switch which then connects to any existing 1GbE network. The Terrain Server specification provided below can service up to twenty four VRSG IGs and can be modified to support additional IG systems. The Terrain Server is delivered populated with all of MVRsimulation's round-earth VRSG terrain (MDS); that is, all of CONUS++ and other regions of the world.

Specification

  • (2X) 2nd Gen Intel XEON SILVER 4208 2.1GHz / 3.2GHz 11MB Processor (8 Cores / 16 Threads)
  • (2X) Intel Thermal Solution Socket LGA-3647 Cooling Fan & Heatsink
  • Intel S2600STBR (C624 Chipset) DUAL LGA-3647 Motherboard
  • 128GB (8 - 16GB) DDR4-2666 ECC Registered CL19 2R X8 1.2V RAM
  • Integrated 2D Video Controller (VGA Connection)
  • 2X USB 3.0 (Rear) / 2X USB 2.0 (Rear)
  • Integrated 10-Port Serial-ATA/600 Ports
  • (2X) Samsung 883 DCT 960GB 2.5" SATA-600 Solid-State-Drive (SSD) - RAID 1
  • Integrated (2X) Hot-Swap 2.5" SATA Removable Drive Bays w/ Drive Trays
  • Intel RSP3DD080F TRI-MODE 8-Port SATA PCI-E 3.0 x8 RAID Controller Card w/ 4GB Cache
  • (8X) Seagate Exos X16 16TB 256MB 7200RPM SAS 12GB/s Hard Drive - RAID 6 - ~87TB Capacity
  • (2X) Seagate Exos X16 16TB 256MB 7200RPM SAS 12GB/s Hard Drive - Scratch Disk
  • Integrated (16X) Hot-Swap Removable Drive Bays w/ Drive Trays
  • SLIM BLU-RAY 6X Writer SATA Internal Drive
  • Integrated DUAL Intel 10GBE Network Adapter
  • Intel Remote Management Module 4 Lite 2
  • Intel Trusted Platform Module (TPM) 2.0 Module
  • Startech Dual-Port USB 3.1 Gen 2 Card - 10Gbps per port - 1x USB-A / 1x Type-C
  • AIC RSC-3ET 3U Rackmount Chassis w/ 800W Platinum Redundant Power (19"W x 7"H x 27"D)
  • AIC 28" Tool-Less Rackmount Slide Rails
  • Microsoft Windows Server 2019 STANDARD x64 (1-2 CPU) OEM License & Media w/ 5 USER CAL
  • Additional Microsoft Windows Server 2019 OEM 20 USER CAL
  • TrippLite SmartPro 1500VA / 1350W 2U Rackmount UPS Battery Backup

PN: TERRAINSERVER

System Cost: $18,260.00 U.S. (shipping not included)

This configuration represents a high-end system meant to be state-of-the-art. MVRsimulation can modify the RAID size to expand the available disk space or modify the system components to meet your individual price and performance needs.



Additional Hard Drives for use in Classified/Unclassified network:

  • (2X) Samsung 883 DCT 960GB 2.5" SATA-600 Solid-State-Drive (SSD) - RAID 1
  • (2X) AIC 2.5" SATA Removable Drive Trays
  • (8X) Seagate Exos X16 16TB 256MB 7200RPM SAS 12GB/s Hard Drive - RAID 6 - ~87TB Capacity
  • (2X) Seagate Exos X16 16TB 256MB 7200RPM SAS 12GB/s Hard Drive - Scratch Disk
  • (10X) AIC 2.5" SATA Removable Drive Trays

PN: TERRAINDRIVES

System Cost: $7,035.00 U.S. (shipping not included)



Additional networking components to provide full 10-Gbit bandwidth to enabled IGs, which must have an installed 10-Gbit NIC:

  • Netgear GS728TXS ProSafe 24-Port Stackable Gigabit Smart SW W/ 4X 10GB SFP+ Slot
  • (24X) Belkin 10ft CAT6 Gigabit Patch Cable - Black
  • (2X) Netgear XS712T ProSafe 12-Port 10-Gigabit Smart Switch w/ 2X 10GB SFP+ Ports
  • (24X) Belkin 10ft CAT6A 10GBe Patch Cable - Black

PN: TERRAIN10GB24p

System Cost: $3,650.00 U.S. (shipping not included)



This specification is subject to change without notice. Please contact MVRsimulation to confirm whether this configuration is current and for more information. (09/20)

The MVRsimulation Terrain Database Generation System is a high-end system which acts as a catalyst for creating and editing terrain for use with MVRsimulation Virtual Reality Scene Generator (VRSG) image generator (IG) systems. This system, which stores up to 26 TB, is designed to hold the large amounts of source data typically required for complex virtual worlds. The system is optimized for writing data to disk and for storing your terrain data on a MVRsimulation Terrain Network Attached Storage (NAS) device or on a MVRsimulation Terrain Server system which provides access to a large number of simultaneously connected IG systems.

The Terrain Database Generation system is designed to provide optimized high speed data throughput with large amounts of RAM and SSD/NVME drive space, optional multiple GPUs for image processing and high bandwidth data throughput over a 10 Gbit backbone network switch for connectivity to the Terrain Server or NAS.

This system is delivered with MVRsimulation Terrain Tools for Esri®ArcGIS®, which can be operated with a general understanding of geospatial data concepts, regardless of experience with ArcGIS software. The tools enable users to create high-fidelity simulation and training environments without being a terrain expert. Esri ArcGIS, which is also delivered with this system, is required for running MVRsimulation Terrain Tools.

As independent options, users can purchase commercial software packages to support their creation efforts, including editing of imagery, features, and source data.

Specification

  • MVRsimulation Terrain Tools for Esri ArcGIS Software
    • Software on Blu-Ray disc media kit with printed color user's guide
    • Gemalto Sentinel HASP USB dongle for license validation
  • MVRsimulation VRSG Software
    • Software on Blu-Ray TL disc media kit with printed color user's guide
    • Gemalto Sentinel HASP USB dongle for license validation
  • Esri ArcGIS v10.5 Software and 3D Analyst Extension Software
    • (1x) First-year maintenance is included in the license.
      (Maintenance includes technical support, updates, and other benefits.)
  • (2X) Intel XEON GOLD 6226R 2.9GHz / 3.9GHz 22MB Processor (16 Cores / 32 Threads)
  • (2X) Thermal Solution Socket-R LGA-3647 Cooling Fan & Heatsink
  • SuperMicro X11DAI-N (C621 Chipset) DUAL LGA-3647 E-ATX Motherboard
  • 512GB (16 - 32GB) DDR4-2933 ECC Registered 2R X8 CL21 1.20V RAM
  • Nvidia GeForce RTX 3090 PCI-Express 3.0 x16 Graphics Card w/ 24 GB
  • Integrated 10-Port Serial-ATA/600 Ports
  • (1X) Samsung 970 PRO 1TB NVMe M.2 PCI-e 3.0 x4 Solid State Drive - O/S
  • (1X) Samsung 970 EVO PLUS 2TB NVMe M.2 PCI-e 3.0 x4 Solid State Drive
  • Icy Dock ToughArmor 2-Bay M.2 PCIe NVMe SSD Mobile Rack for 3.5" Drive Bay
  • (4X) Seagate Enterprise 8TB 256MB 7200RPM SATA-600 Hard Drive - JBOD
  • Chenbro 4-Bay 3.5" Hot-Swap Removable Drive Bays w/ Drive Trays
  • LG BLU-RAY 16X Writer SATA Internal Drive
  • Intel X550-T1 10-Gigabit Single Port PCI-E x4 Card
  • Chenbro SR105 Server Chassis (7.8"W x 16.7"H x 20.9"D)
  • 1200W 80 Plus Platinum ATX12V / EPS12V Power Supply
  • Microsoft Windows 10 PROFESSIONAL 64-BIT OEM License & DVD Media
  • Keytronic Black USB Keyboard
  • Microsoft Comfort Mouse 6000 USB / MousePad
  • Logitech F310 USB GamePad
  • 3Dconnexion SpaceMouse Pro USB 3D Navigation Device
  • Asus 24" VS248H-P WideScreen LED Display 1920x1080 + 6ft HDMI Cable
  • TrippLite SmartPro 1500VA / 1350W 2U Rackmount UPS Battery Backup
  • Netgear GS728TXS ProSafe 24-Port Stackable Gigabit Smart SW W/ 4X 10GB SFP+ Slot
  • (2X) Belkin 10ft CAT6 Gigabit Patch Cable - Black
  • Netgear XS712T ProSafe 12-Port 10-Gigabit Smart Switch w/ 2X 10GB SFP+ Ports
  • (2X) Belkin 10ft CAT6A 10GBe Patch Cable - Black

PN: TERRAINGEN

System Cost: $49,995.00 U.S. (shipping not included)
Availability is limited and delivery lead time is 12-18 weeks.

This configuration represents a high-end system that is meant to be state-of-the-art. MVRsimulation can modify the system components to meet your individual price and performance needs.



Additional Hard Drives for use in Classified/Unclassified network:

  • (1X) Samsung 970 PRO 1TB NVMe M.2 PCI-e 3.0 x4 Solid State Drive - O/S
  • (1X) Samsung 970 EVO PLUS 2TB NVMe M.2 PCI-e 3.0 x4 Solid State Drive
  • (2X) Icy Dock ToughArmor NVMe M.2 Drive Removable Tray
  • (4X) Seagate Enterprise 8TB 256MB 7200RPM SATA-600 Hard Drive - JBOD
  • (4X) Chenbro 3.5" Hard Drive Removable Tray

PN: TERRAINGENDRIVES

System Cost: $2,675.00 U.S. (shipping not included)



This specification is subject to change without notice. Please contact MVRsimulation to confirm whether this configuration is current and for more information. (02/21)

The MVRsimulation Terrain Network Attached Storage (NAS) device is a system which stores approximately 80+ TB terrain database tiles for use with MVRsimulation Virtual Reality Scene Generator (VRSG) software on a limited number of MVRsimulation Extreme Desktop System  image generator (IG) systems (PN: EXTREMEDESK). The system is designed to provide optimized high bandwidth data throughput over either a 1-Gbit (up to five attached IGs) or 10-Gbit back bone network switch which then connects to any existing 1-Gbit network. The Terrain Network Attached Storage (NAS) device specification provided below can service up to five/ten VRSG IGs and can be modified to support additional IG systems. The Terrain Network Attached Storage (NAS) device is delivered populated with all of  MVRsimulation's round-earth VRSG terrain (MDS); that is, all of CONUS++ and  terrain of the world.

MetaVR Terrain NAS

Specification

  • U-NAS NSC-800 Small Form Factor Chassis (10”W x 7.1”H x 12.5”D)
    -With Integrated 8x 3.5" SATA/SAS Hot-Swappable Drive Bays
  • Athena 400W 1U EPS 80 Plus Power Supply
  • SuperMicro X10SDV-4C-TLN2F Server Mini-ITX Motherboard
    - Integrated Intel XEON D-1520 2.2GHz / 2.6GHz 6MB CPU (4-Cores / 8 Threads)
    - Supports up to 64GB DDR4 ECC UDIMM RAM (4 Slots)
    - Integrated 6x SATA3 Ports
    - Integrated DUAL Intel 10GBE LAN
  • 16GB (2 - 8GB) DDR4-2133 1.2V CL15 2RX8 ECC UDIMM RAM Module
  • Samsung 850 EVO 256GB M.2 2280 Internal SSD
  • Intel RS3DC080 8-Port SAS/SATA PCI-E X8 RAID Controller Card w/ 1GB Cache - RAID 6
  • (8X) Seagate Exos X16 16TB 256MB 7200RPM SATA-600 Hard Drive ~87TB RAID 6
  • Microsoft Windows 10 PRO OEM License & CD Media
  • TrippLite SmartPro 1500VA UPS Battery Backup

PN: TERRAINNAS

System Cost: $7,475.00 U.S. (shipping not included)

Additional networking components to provide full 10-Gbit bandwidth to enabled IGs, which must have an installed 10-Gbit NIC:

  • Netgear XS708T ProSafe 8-Port 10-Gigabit Smart "Managed" Switch
    -With 2X (SHARED) 10GB SFP+ Ports
  • (8X) Belkin 10 ft CAT6A 10GBe Patch Cable - Black

PN: TERRAIN10GB8p

System Cost: $1,125.00 U.S. (shipping not included)



This specification is subject to change without notice. Please contact MVRsimulation to confirm whether this configuration is current and for more information.

MVRsimulation complete systems have the following warranty and delivery policies that make our systems even more compelling:

  • One year free hardware parts depot on any defective component resulting from normal use.
  • One year free hardware technical support and labor during normal business hours
  • Four week or less build time from receipt of purchase order (requires confirmation before processing).
  • One- or two-day Federal Express delivery available, per our shipping policy.
  • Technical support and maintenance for MVRsimulation software free of charge for one year from delivery date.
  • Extensive 72-hour system burn-in and hardening before delivery.
  • You can make use of our expertise at obtaining the right system for your needs or use the Internet to find the lowest cost items and build your own system using our recommended system configuration. Please contact us for a current quote on the recommended system or suggest a system more specific to your needs. Stated prices might vary depending upon market conditions; the prices assume Net 10 payment terms and are exclusive of shipping costs.



All specifications on this page are subject to change without notice. Please contact MVRsimulation to confirm whether a configuration is current and for more information.
